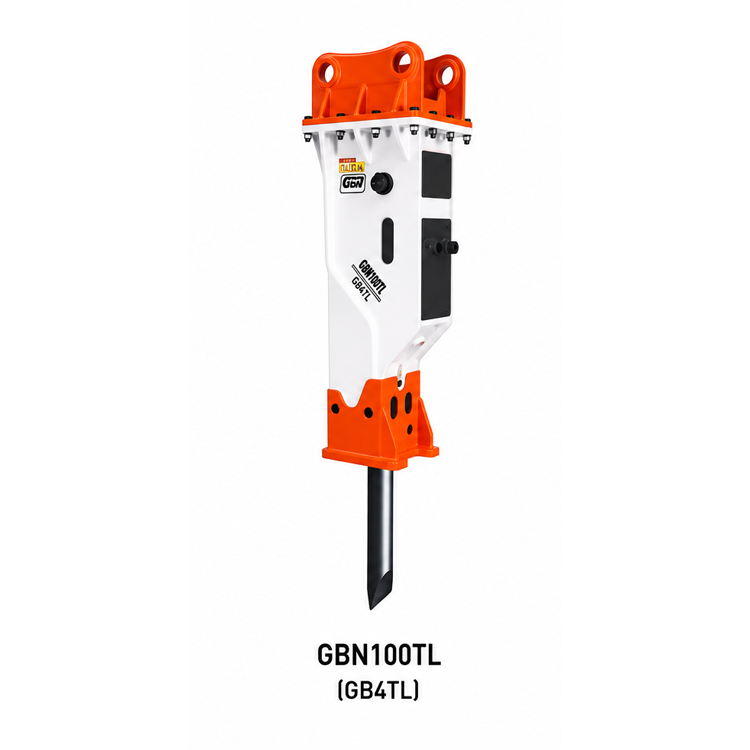

The GBN100TL hydraulic breaker is a heavy-duty T-Series hydraulic breaker designed for larger excavators and demanding construction, demolition, concrete, rock, and general breaking applications. With a 570 kg silenced operating weight and a 90 mm tool, the GBN100TL provides substantial impact performance for excavators in the 6 to 13 ton class.
The GBN100TL is designed for contractors who need increased hydraulic breaking power for larger excavators. Its 90 mm moil-type tool provides the strength and durability required for demanding breaking applications.
The silenced GBN100TL has an operating weight of 570 kg (1,257 lb). It is designed for excavators from 6 to 13 tons, with approximately 10 tons listed as the suitable operating class.
The breaker operates at an impact rate of 480–850 blows per minute, allowing the operator to balance impact frequency and hydraulic power according to the application and carrier machine.
The GBN100TL requires a hydraulic oil flow of 45–85 L/min and operates at a breaker pressure range of 130–160 bar. Correct hydraulic flow and pressure matching should always be confirmed with the carrier excavator before installation.
The GBN100TL incorporates GB's larger T-Series design features, including a robust housing, reinforced wear protection, high-quality piston construction, and a dual tool-retainer system for improved tool alignment and wear distribution.
An automatic grease system is available as an option, helping simplify lubrication and routine maintenance during demanding working conditions.
Built for demanding demolition work where larger excavators require a powerful hydraulic breaker capable of sustained heavy-duty operation.
The 90 mm tool is suited to demanding concrete, masonry, structural material, and construction breaking applications.
Suitable for rock breaking, hard material reduction, site preparation, trenching, and general excavation work requiring substantial hydraulic impact power.
Designed for excavators in the 6–13 ton range, with approximately 10 tons listed as the suitable operating class.
| Specification | GBN100TL |
|---|---|
| Series | T-Series |
| Breaker Model | GBN100TL |
| Configuration | Silenced |
| Operating Weight – Silenced (Tool + Machine) | 570 kg / 1,257 lb |
| Operating Weight – Open Top | 613 kg / 1,351 lb |
| Tool Type | Moil |
| Tool Weight | 41 kg |
| Tool Diameter | 90 mm |
| Operating Pressure – Breaker | 130–160 bar / 1,885–2,320 psi |
| Setting Pressure – Machine | 190 bar / 2,755 psi |
| Impact Rate | 480–850 bpm |
| Accumulator Pressure | None – No Accumulator |
| Back Head Pressure (N2 Gas) | 16 bar / 232 psi |
| Required Oil Flow | 45–85 L/min / 11.8–22.4 GPM |
| Minimum Excavator Size | 6 tons |
| Maximum Excavator Size | 13 tons |
| Recommended / Suitable Excavator Class | 10 tons |
| Automatic Grease System | Available Option |
| Underwater System | Available Option |
| Tool Retainer | Dual Tool Retainer System |
Important: Hydraulic flow and pressure requirements should be verified against the excavator manufacturer's specifications before installation. Actual attachment operating conditions may vary depending on the carrier machine, hydraulic system, tooling, and application. Automatic greasing and underwater operation require the appropriate optional configuration and should be used according to the manufacturer's operating requirements.
